How to Set up Sennheiser Ambeo Max Soundbar for the best audio experience? One of the finest soundbars available in the market is the Sennheiser Ambeo Max Soundbar. Which provides dramatic 3D sound experiences. Every time you want amazing surround sound for movies, the setup has to be perfect. If you prefer sharp and defined audio for music, the setup must also be precise. A proper setup is necessary to release its full potential. Follow this guide through the entire installation process.

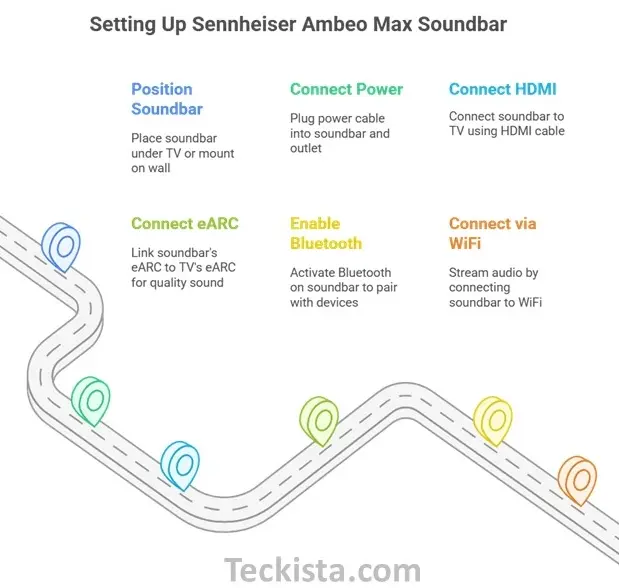

How to Set Up Sennheiser Ambeo Max Soundbar
Step 1: Positioning the Soundbar
Before you start plugging in cables, positioning the soundbar correctly is essential:
- The soundbar should be put straight under the TV and aligned in center for optimal projection of sound.
- At least 5 inches of height clearance above the soundbar remains necessary for the upward-firing drivers to work.
- Alternatively, go for a wall-mounted installation and use a wall-mount bracket to install the soundbar at ear level..
Step 2: Connecting Power
- Plug the power cable into the soundbar.
- Ensure that the power outlet is easily accessible. You might need it in case you need to reset the device later.
Step 3: Connecting Devices
The Sennheiser Ambeo Max Soundbar supports multiple input options.
- HDMI Connection: Use the included HDMI cable. Connect one end to your TV. Plug the other end into the soundbar’s HDMI input.
- eARC Support: For high-quality sound, connect the soundbar’s HDMI output to your TV’s eARC-compatible HDMI input. Ensure both devices support eARC for the best experience.
- Bluetooth & WiFi: If you prefer wireless connections you can enable Bluetooth on the soundbar. Pair it with your streaming devices. You can also connect via WiFi for seamless audio streaming.
How to Connect Sennheiser Ambeo Max Soundbar to TV
Heighten your sound quality experience via HDMI eARC, connecting your sound bar and your TV:
- Insert one end of the HDMI cable into the HDMI eARC/ARC port of your TV.
- Insert the other end of the cable into the HDMI OUT port of the soundbar.
- Go to TV settings HDMI eARC on and set the audio output to Dolby Atmos or Passthrough mode for your television.
If your TV is not eARC enabled, you can go for optical cables as an alternative, but this will limit full surround sound capabilities.
How to Connect Sennheiser Ambeo Max Soundbar to WiFi
After connecting to WiFi the soundbar can access firmware updates and streaming services.
Step 1: Get the Sennheiser Smart Control App
- Download the Sennheiser Smart Control app for your smartphone from URLs Android or IOS.
Step 2: Turn On WiFi on Your Soundbar
- Power on the soundbar and put it in WiFi pairing mode. You can refer to the manual if required.
- Open the Smart Control app and follow the prompts to add the soundbar to your network.
Step 3: Finalizing Connection
- Ensure that your mobile device is on the same WiFi network as the soundbar.
- To finish the connection process choose your network in the app and input the WiFi password.
Calibration for Optimal Sound
The most outstanding features of the Ambeo Max Soundbar is its room calibration technology. It adapts the sound to your specific environment.
Step 1: Connect the Calibration Microphone
- Plug the included microphone into the soundbar’s mic input.
- Position the microphone at ear height where you would normally sit.
Step 2: Run the Calibration Process
- Follow the on-screen instructions on the soundbar or through the Smart Control app.
- The process will analyze your room’s acoustics and adjust the audio output accordingly.
This ensures that sound waves are optimized for your unique room setup, providing an immersive 3D sound experience.
How to Reset Sennheiser Ambeo Max Soundbar
In case you face some issues with connecting to a network or want to get back to default settings, then performing a factory reset may be required.
Step 1: Power Off
- Unplug the power cable from the wall socket.
Step 2: Locate Reset
- Find the reset button which is usually located underneath the soundbar.
Step 3: Perform Reset
- Hold the reset button while plugging in the power cord again.
- Keep holding it until you see a reset confirmation on the display or hear an audio cue.
- Follow any instructions populating onto your screen that complete the process.
Final Thoughts
Proper positioning of the Sennheiser Ambeo Max Soundbar is integral to realizing its full sound capabilities. This guide will set you on the right path for optimal sound quality during movies. It will also help you achieve the best audio experience for music. Additionally, it ensures high-quality sound for gaming.
If you’ve encountered any issues, you can use the Sennheiser Smart Control app to check for troubleshooting guides or refer to the official user manual. Have fun with your movie-quality sound!
